Stereo microscopes

XTX-1 XTX-2 XTX-3 XTX-4

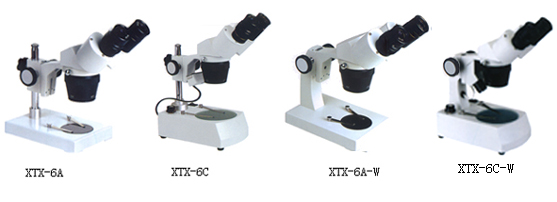

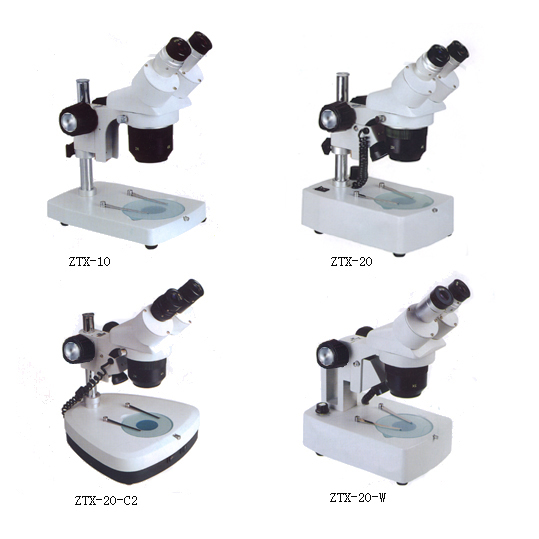

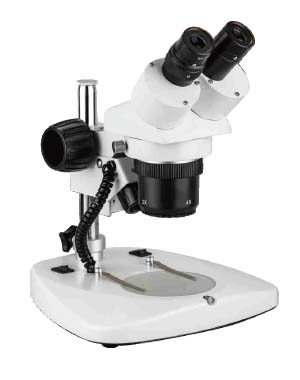

XTX-5 XTX-6 XTX-7 ZTX-10/20

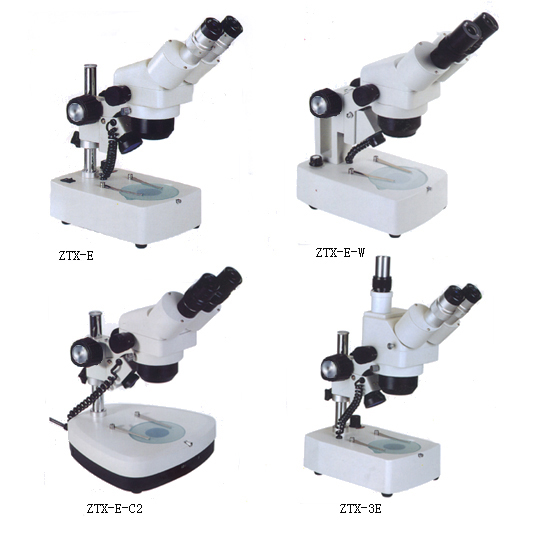

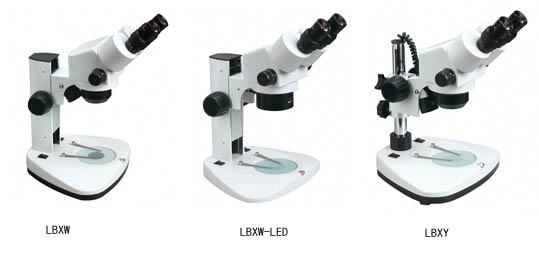

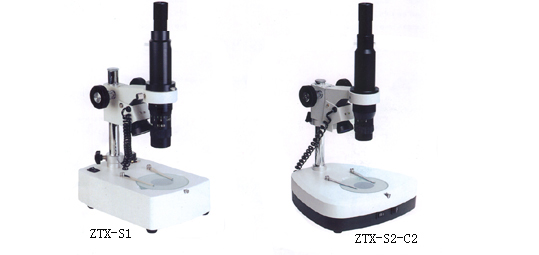

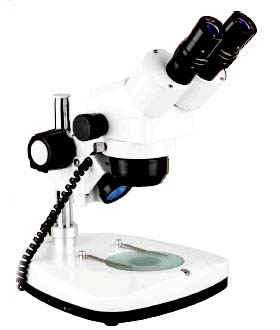

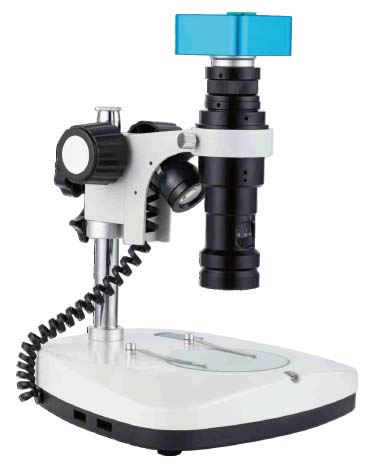

ZTX-E LBX/ DTX ZTX-S: 7x-45x zoom XTD-1:20x

Information

1.Sharp stereo erect image over a wide field of view.
2.45o inclined and 360o rotational binocular head with locked-in eyepiece. The left ocular-tube with diopter adjustment 5dp, The interpupillary distance is between 55-75mm.
3.Three kinds of 90o rotational objet for seletion
4.Electric apparatus has CE approval
5.Power supply 110V/60Hz or 220V/50Hz
6.Each set packed in styrofoam and in an inner box. Four sets in one carton.
7.A wide range of optional accessories.
Optional accessories:
1.Eyepiece WF5X, WF10X, WF15X, WF20X
2.Objective 1X, 2X, 3X,4X,
3.Darkfield stage,94.5mm
4.Jewel tweezer
5.White/black objcet plate,60mm
6.Frosted glass object plate,95mm
7.Incandescent bulb 12V/10W/LED
8.Halogen bulb 12V/10W
9.Ring fluorescent lighting 8W,10W
10.Wooden cabinet with lock and key/Aluminium case

Specifications

MODEL
EYEPIECE
OBJECTIVE
PLATE
Illumination

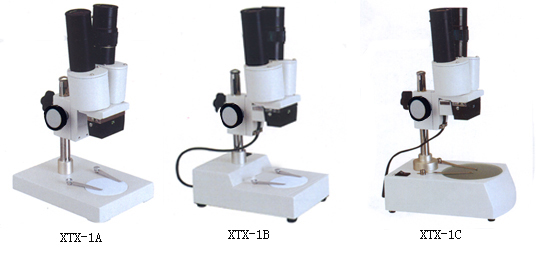

XTX-1A
WF10X
Inserted 2X
Black/White(60) None
XTX-1B
WF10X
Inserted 2X
Black/White(60) Incident illumination
XTX-1C
WF10X
Inserted 2X
Frosted glass (95)

Incident illumination transmitted illumination

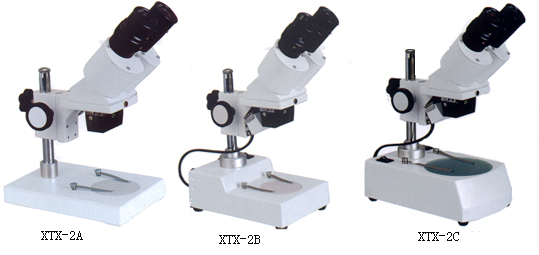

XTX-2A WF10X Inserted 2x Black/White(60) None
XTX-2B WF10X Inserted 2x Black/White(60) Incident illumination
XTX-2C WF10X Inserted 2x Frosted glass(95) Incident illumination
transmitted illumination

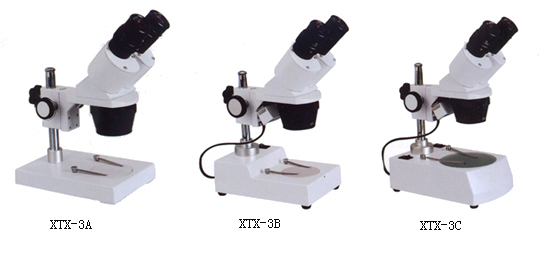

XTX-3A WF10X Rotated
1X-2X
1X-3X
2X-4X
Black/White(60) None
XTX-3B WF10X Black/White(60) Incident illumination
XTX-3C WF10X Frosted glass(95) Incident illumination
transmitted illumination

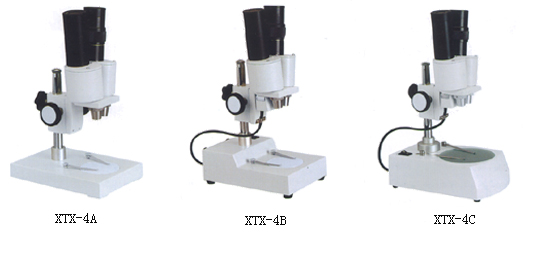

XTX-4A
WF10X
Fixed 2x Black/White(60) None
XTX-4B
WF10X
Fixed 2x Black/White(60) Incident illumination
XTX-4C
WF10X
Fixed 2x Frosted glass (90) Incident illumination
transmitted illumination

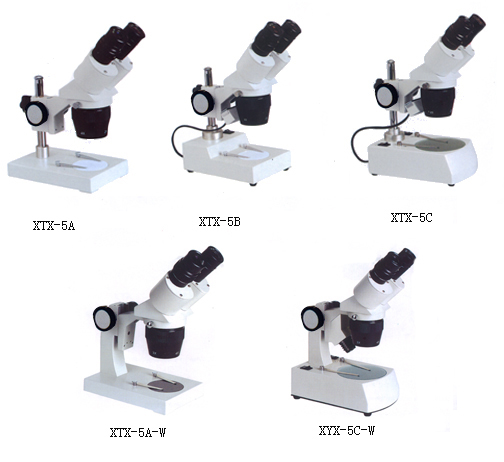

XTX-5A WF10X Rotated
1X-2X
1X-3X
2X-4X
Black/White(60) None
XTX-5B WF10X Black/White(60) Incident illumination
XTX-5C WF10X Frosted glas(95) Incident illumination
transmitted illumination
XTX-5A-W WF10X Black/White(60) None
XTX-5C-W WF10X Frosted glass(95) Incident illumination
transmitted illumination

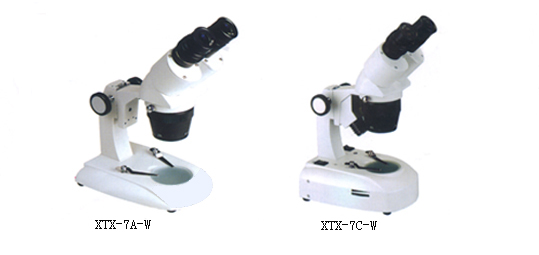

XTX-7A-W WF10X Rotated
1X-2X
1X-3X
2X-4X
Frosted glass None
XTX-7C-W WF10X Frosted glass Incident illumination
transmitted illumination

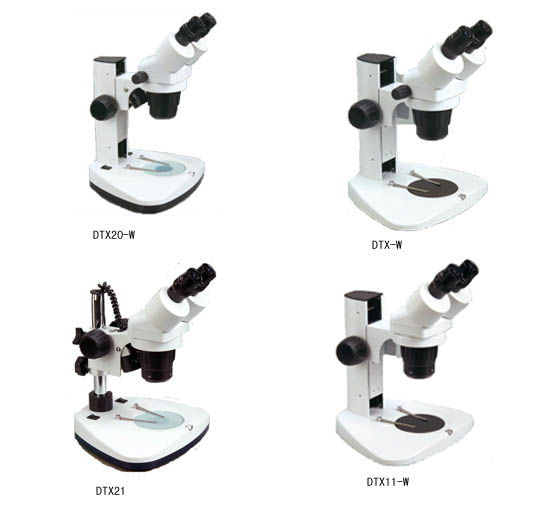

DTX11 SWF10X 1X-2X White/back Natural illumination
DTX21 SWF10X 2X-4X Frosted glass Incident illumination

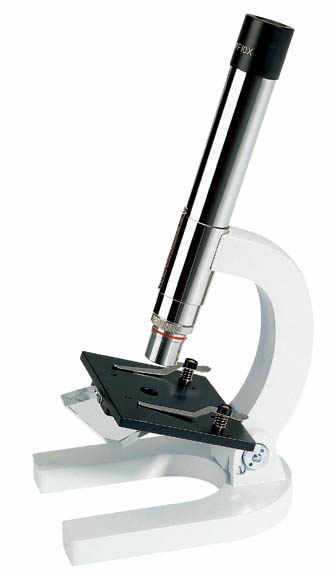

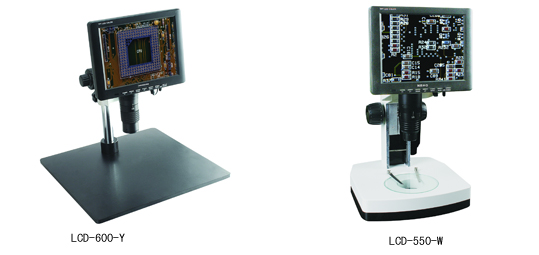

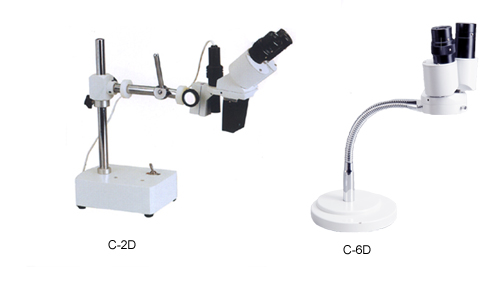

C-2D: 5x-20x SX-C:20x/40x/50x LCD-550:10x-85x zoom STX: 20x,illuminated,need 2xAA batteries

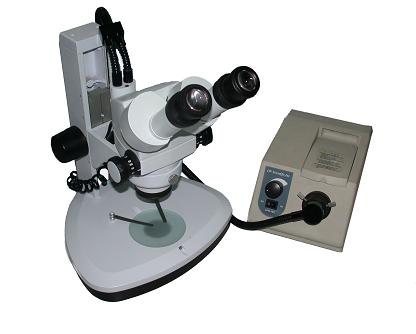

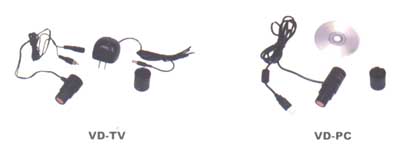

Z3-C: 14x-75x,zoom VD-PC:7x-45x zoom





Spare parts for micriscopes:

Eyepiece ,Objective Fluorescent,LED Light Helgon Lighting Darkfield , Gem Clip
